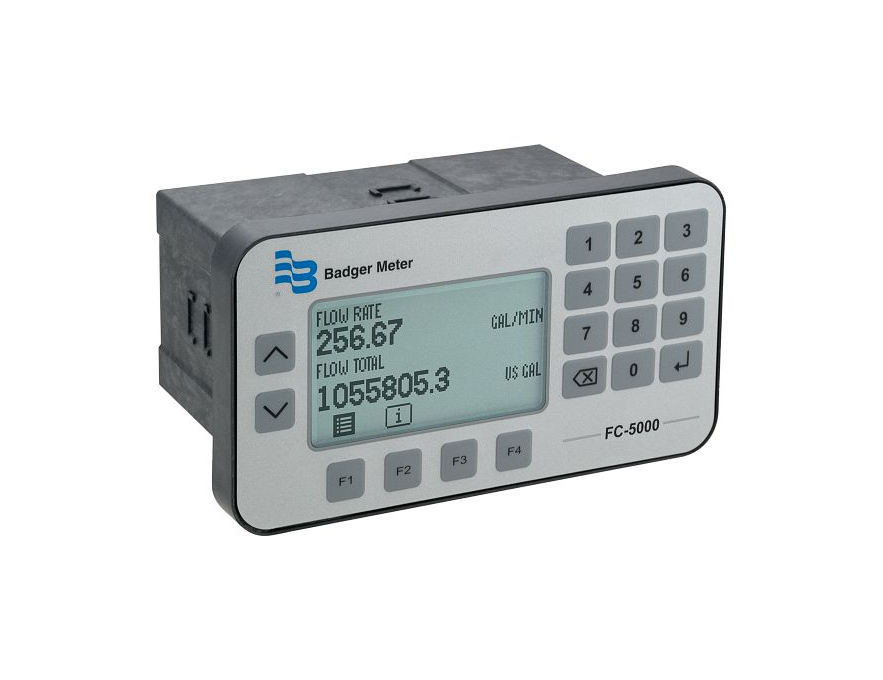

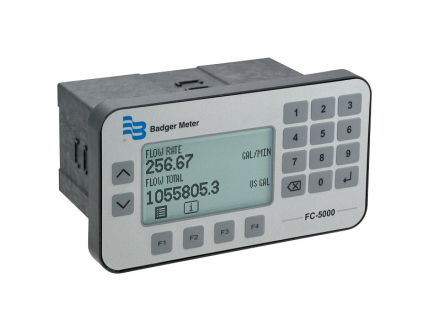

FC-5000 BTU Monitor
Constructions:
The FC-5000 BTU Monitor provides accurate measurement of power/energy consumption used in closed-loop, hydronic thermal transfer systems, typically found in HVAC sub-metering applications. The FC-5000 product lines are microprocessor-driven devices designed for flow monitoring, while the BTU Monitor expands device capabilities by integrating inputs for fluid temperature data. Instantaneous rate and total energy consumption is achieved, simultaneously, while conforming to EN 1434 calculation standards.
Features
Compatible with the complete line of Badger Meter industrial flow meters, creating a solution to monitor the effectiveness and efficiencies of hydronic HVAC and other comparable systems.
- View raw and calculated flow data, both to and from the device, including flow data, energy usage and temperature readings
- Promotes intuitive navigation and programming
- Easier, user-friendly wiring installation
- Enables alarms or totalizing output capabilities for rates, totals and temperatures
- Transmit rate, total or temperature data via dedicated output channels
- Application ruggedness
