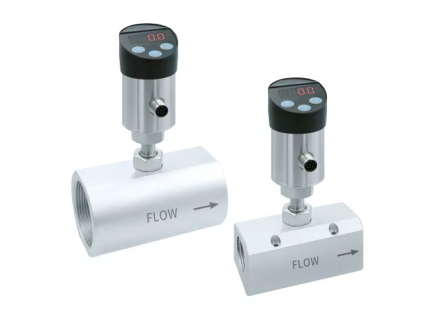

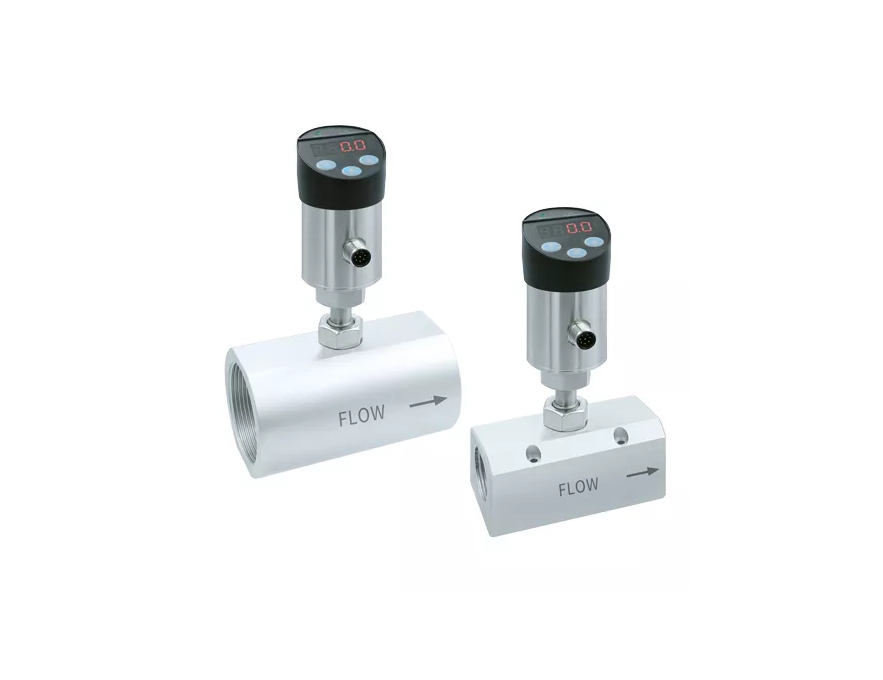

EYC FTM06D-I Inline Type Air Flow Transmitter
Constructions:
Compressed air system / Pneumatic system / Refrigerated air dryer / Adsorption air dryer / Air consumption monitoring / Pipeline leak monitoring
Features:
- Thermal mass flow sensor
- Accuracy : ±1.5% F.S., Operating pressure : Max. 16 bar
- Multiple output option : 4 ... 20 mA / 0 ... 10 V / RS-485 / Frequency / Pulse ( Option )
- Full pipe size range ( DN15 / DN25 / DN40 / DN50 ), easy installation
- Built-in temperature compensation, accurate measurement
- Calibrated by sonic nozzles calibration system
- Stainless steel housing, aluminum alloy pipe
- Connecting to software via RS-485 enables data logging, graph recording, and cumulative flow display (optional)
