Ellipse® AHL Annular Flow Hot Tap, High Pressure Flow Meter

Constructions:

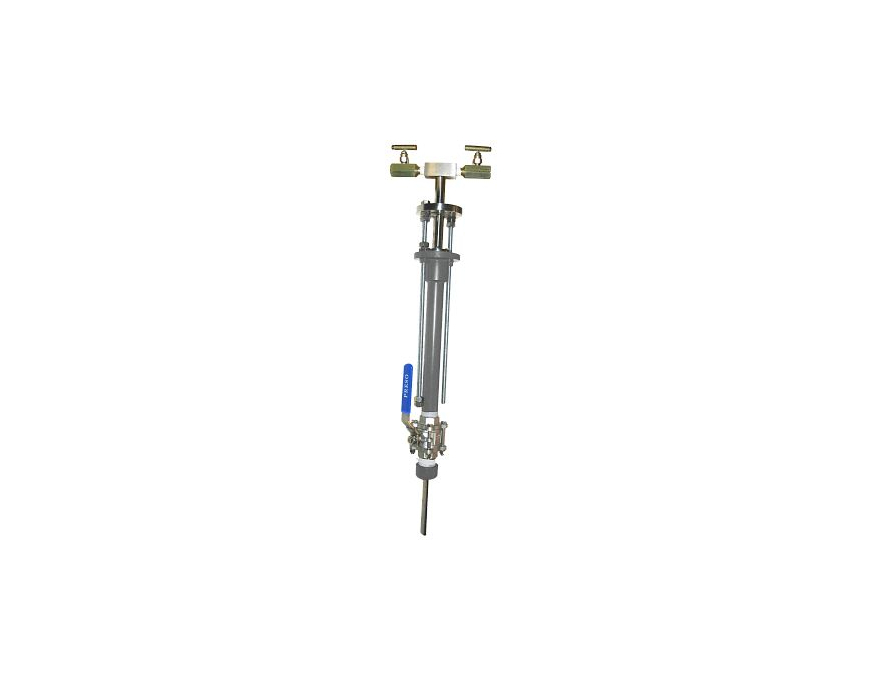

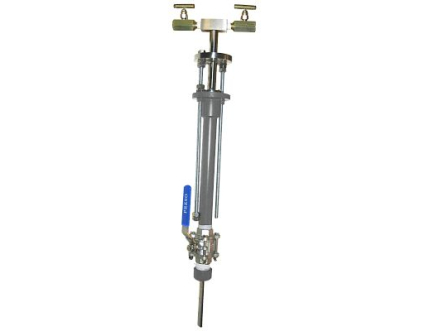

The Ellipse^® Model AHL annular flow device is a hot tap, high pressure flow meter designed to produce a differential pressure that is proportional to flow. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.

Features

Hot tap, high pressure flow meter designed to produce a differential pressure that is proportional to flow.

• Elliptical design outperforms traditional devices
• Turndown Ratio: 17:1; no vacuum effects
• No moving parts equals long, trouble-free service life
• True static pressure measurement rather than a calculated value
• Overcomes loss of accuracy caused by fluid separation at the sensor body
