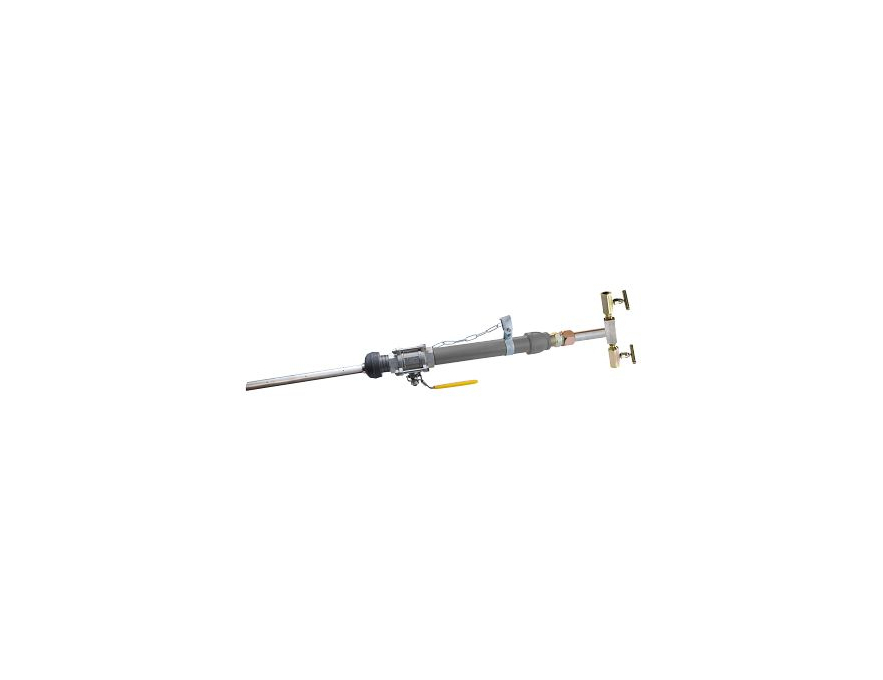

Ellipse® AHR Wet Tap, Low-Pressure Flow Meter
Constructions:
The Ellipse Model AHR annular wet tap, low-pressure flow device is a multi-ported, self-averaging differential pressure flow element. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.
Features
Multiported, self averaging differential pressure flow element for liquid, gas and air applications.
- Elliptical design outperforms traditional devices
- Turndown Ratio: 17:1; no vacuum effects
- No moving parts equals long, trouble-free service life
- True static pressure measurement rather than a calculated value
- Overcomes loss of accuracy caused by fluid separation at the sensor body
